Placa base msi pro h610m – g wifi ddr4 matx 1700

 placa base msi pro h610m – g wifi ddr4 matx 1700
modelo 911 – 7d46 – 070
plataforma – matx (23.6 cm x 20.2 cm)
chipset – intel h610 chipset
cpu
soportados – admite procesadores intel core – pentium gold y celeron de 12ª generación
– zócalo del procesador lga1700
memoria – 2 x ddr4 – soporta hasta 64gb
– soporta 3200(max) – 3000 – 2933 – 2800 – 2666 – 2400 – 2133 mhz
– admite el modo de doble canal
– admite memoria sin búfer ni ecc
slots expansión
– 1 x pcie 3.0 x1 slot
gráficos – 1 x pcie 4.0 x16 slot
puertos e – s –
conectores

conectores internos e – s
– 1 x intel i219v 1gbps lan controller
– 1 x 24 – pin atx main power
– 1 x 8 – pin atx 12v power
– 1 x 4 – pin cpu fan
– 1 x 4 – pin system fan
– 1 x front panel audio
– 2 x system panel s
– 1 x chassis intrusión
– 1 x tpm module
– 1 x clear cmos jumper

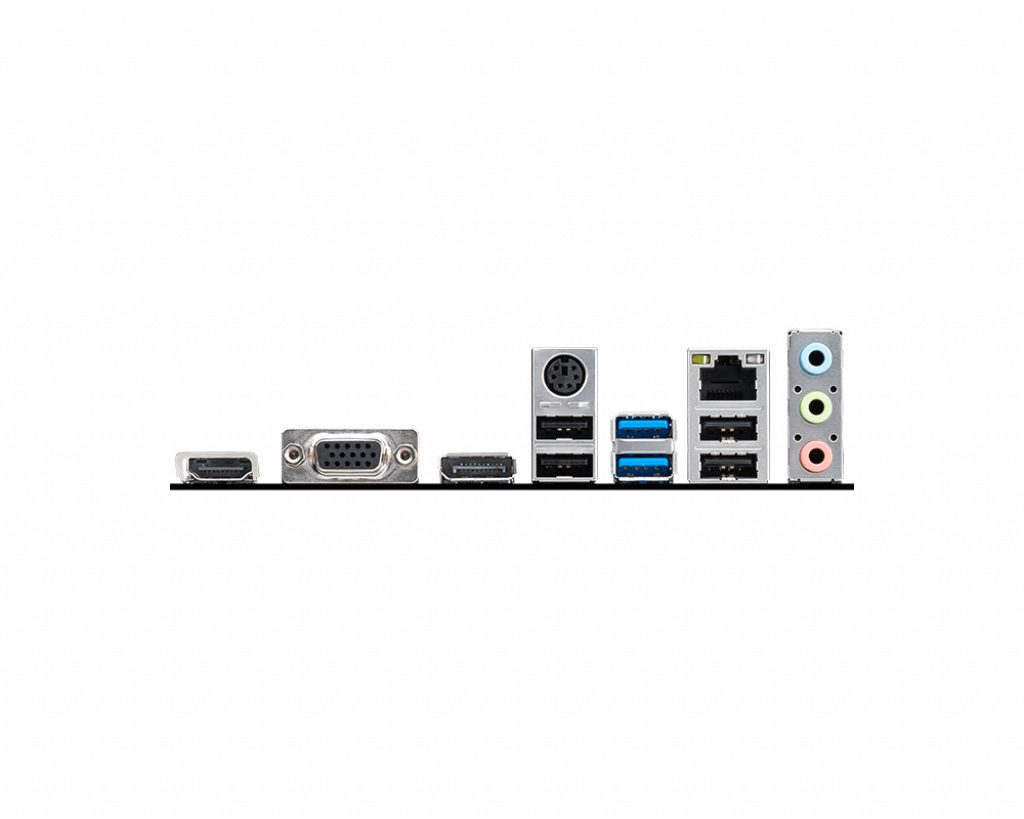

panel e – s trasero
– hdmi
– vga
– displayport
– keyboard – mouse
– usb 3.2 gen 1 5gbps type – a
– lan port
– audio connector
– usb 2.0
otras
características
usb
– intel h610 chipset
4x usb 3.2 gen 1 5gbps ports (2 type – a ports on the back panel – 2 ports available through the internal usb connector)
6x usb 2.0 ports (4 type – a ports on the back panel(hub – gl850g) – 2 ports available through the internal usb 2.0 connector)
conectividad
– intel wi – fi 5
– bluetooth 5.1
almacenamiento
– 1 x m.2 gen3 x4 32gbps slot
– 4 x sata 6gb – s ports
audio
– 7.1 – channel high definitión audio
lan
– 1 x intel i219v 1gbps lan controller
sistema operativo
– soporte para windows 11 64 – bit
